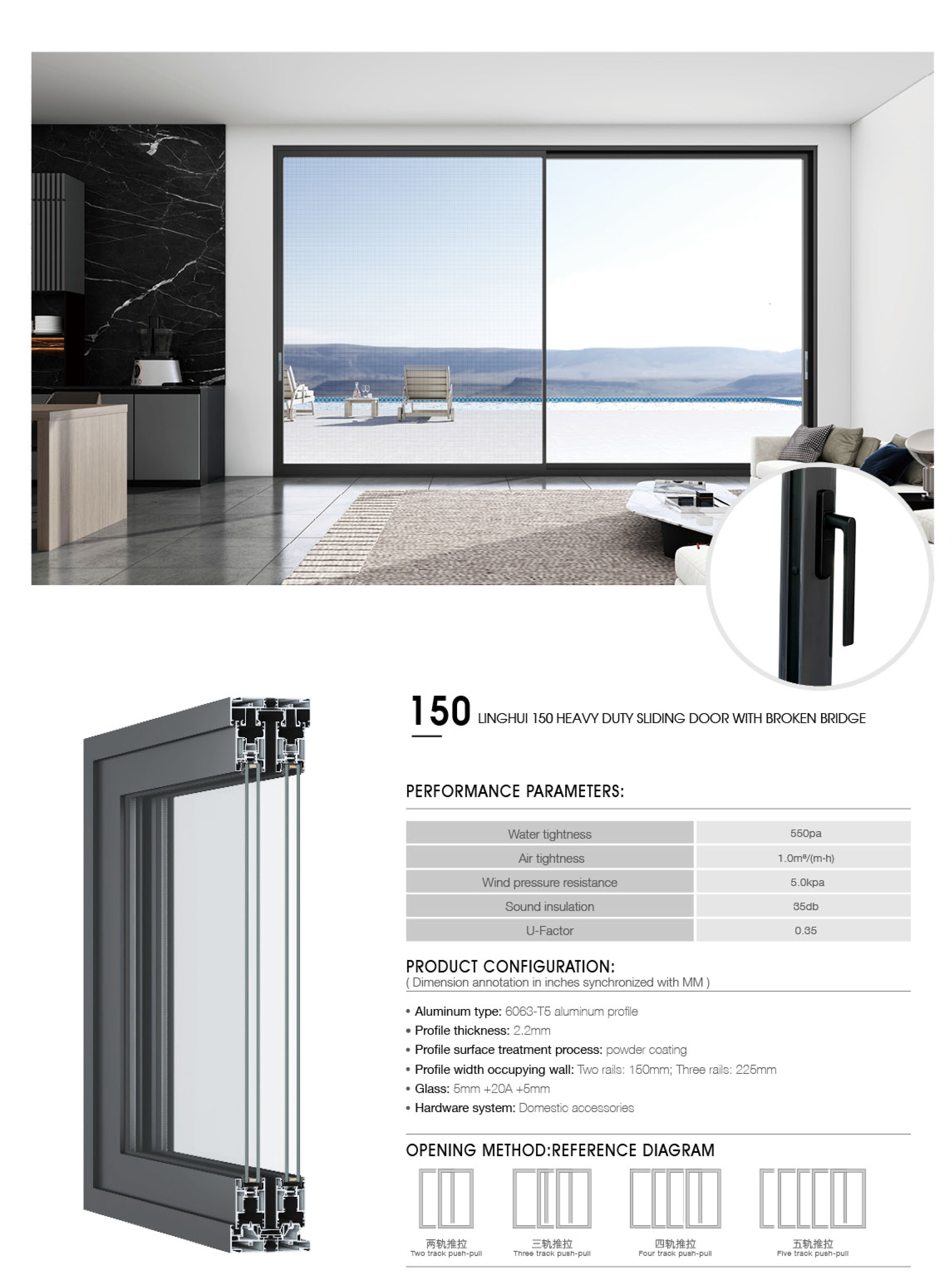

With its exceptional load-bearing capacity and all-weather adaptability, it redefines the benchmark for large-scale doors. Suitable for villas, large apartments with balconies, commercial curtain walls, and high-end clubs – any large space demanding both structural strength and expansive views – it achieves a delicate balance between safety, energy efficiency, and panoramic vistas.
— Heavy-duty thermal break structure: Made of 6063-T5 aluminum alloy profiles with a wall thickness of 2.2mm, providing high load-bearing capacity and resistance to deformation, suitable for ultra-wide and ultra-high door panels and panoramic curtain wall installations.
— Multi-track flexible adaptation: Supports two-track (150mm), three-track (225mm), four-track, and five-track sliding combinations, adapting to different wall thicknesses and opening requirements; allows for free sliding combinations of window sashes, enabling partial ventilation or full panoramic opening.
— Narrow frame design: The frame width is reasonably controlled, balancing structural strength and visual transparency.
Performance Parameters
— Sealing and pressure resistance: Water tightness 550Pa, air tightness 1.0m³/(m·h), wind pressure resistance 5.0kPa, suitable for various windy and rainy climates.
— Thermal insulation and energy saving: U-value 0.35, combined with 5mm+20A+5mm double-glazed glass, effectively blocks heat transfer, suitable for harsh climates such as extremely cold and hot regions.
— Sound insulation and noise reduction: Sound insulation 35dB, creating a quiet indoor environment.
Configuration and Craftsmanship
— Profile treatment: Surface powder coating to enhance weather resistance and aesthetics.
