The compact structural design achieves a balance between performance and visibility, while the minimalist sliding opening mechanism greatly improves space utilization. It is especially suitable for cost-sensitive projects that require both visibility and airtightness, such as kitchens and balconies in ordinary residences or rental properties, as well as small and medium-sized commercial spaces. It is an excellent entry-level choice for those who pursue "practical aesthetics".

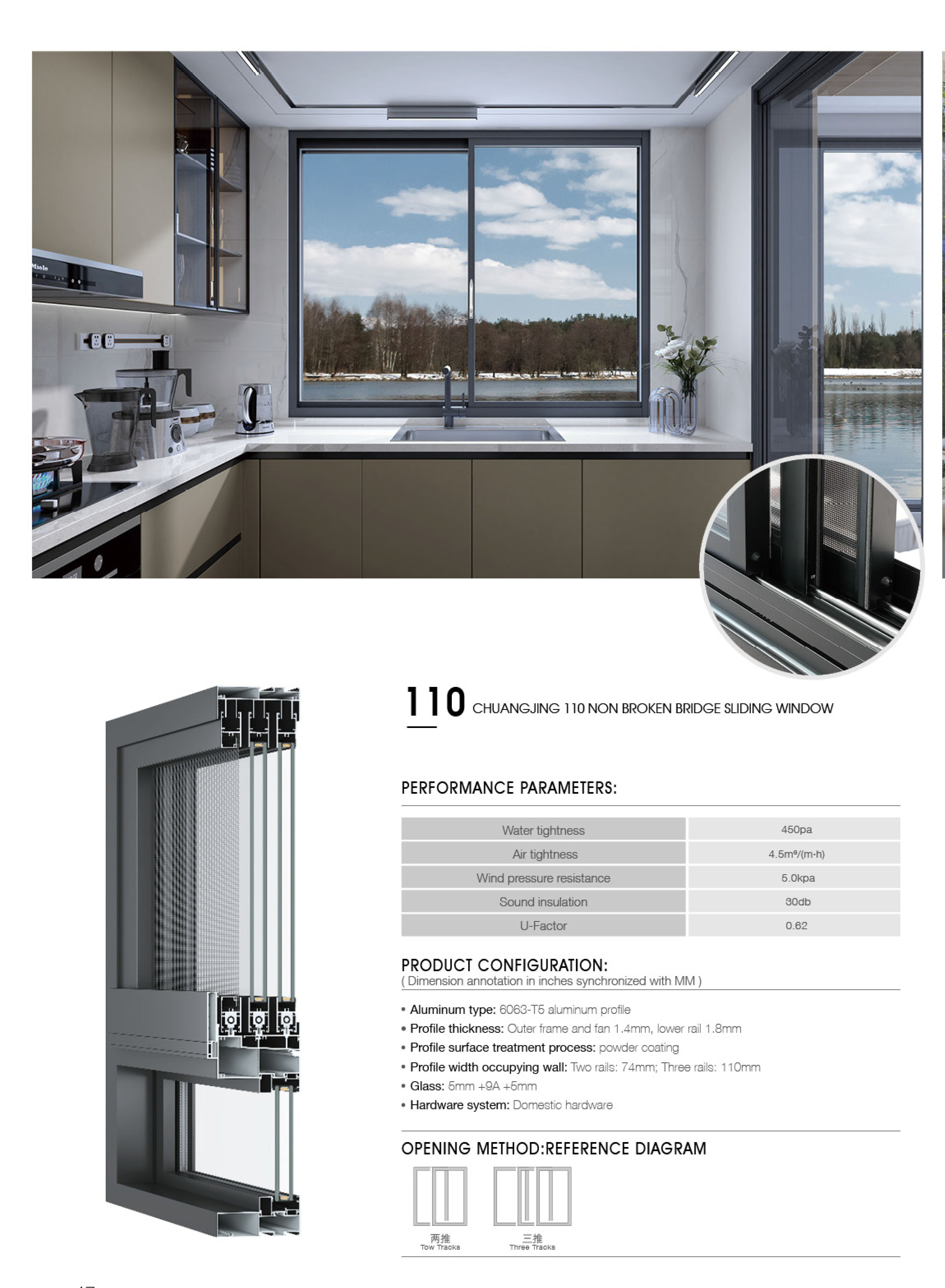

—Adaptable to 110mm three-track/74mm two-track wall thicknesses, balancing structural stability with a narrow frame aesthetic. Supports flexible two-track and three-track configurations to meet various building opening conditions.
Balanced Performance Configuration
—The profiles are made of 6063-T5 aluminum alloy (outer frame and fan thickness 1.4mm, lower rail 1.8mm), with a powder-coated surface.
—Glass configuration: 5mm+9A+5mm insulated glass, paired with a Chinese-made hardware system.
Core Performance Parameters
—Water tightness 450Pa, air tightness 4.5m³/(m·h), wind pressure resistance 5.0kPa, meeting daily wind and rain protection needs.
—In non-thermal break structures, optimized profile and glass configuration achieve a balance between performance and cost, lowering the procurement threshold.
Balancing View and Functionality
—The large glass facade enhances natural light and visual openness, while the sliding opening mechanism saves interior space.
